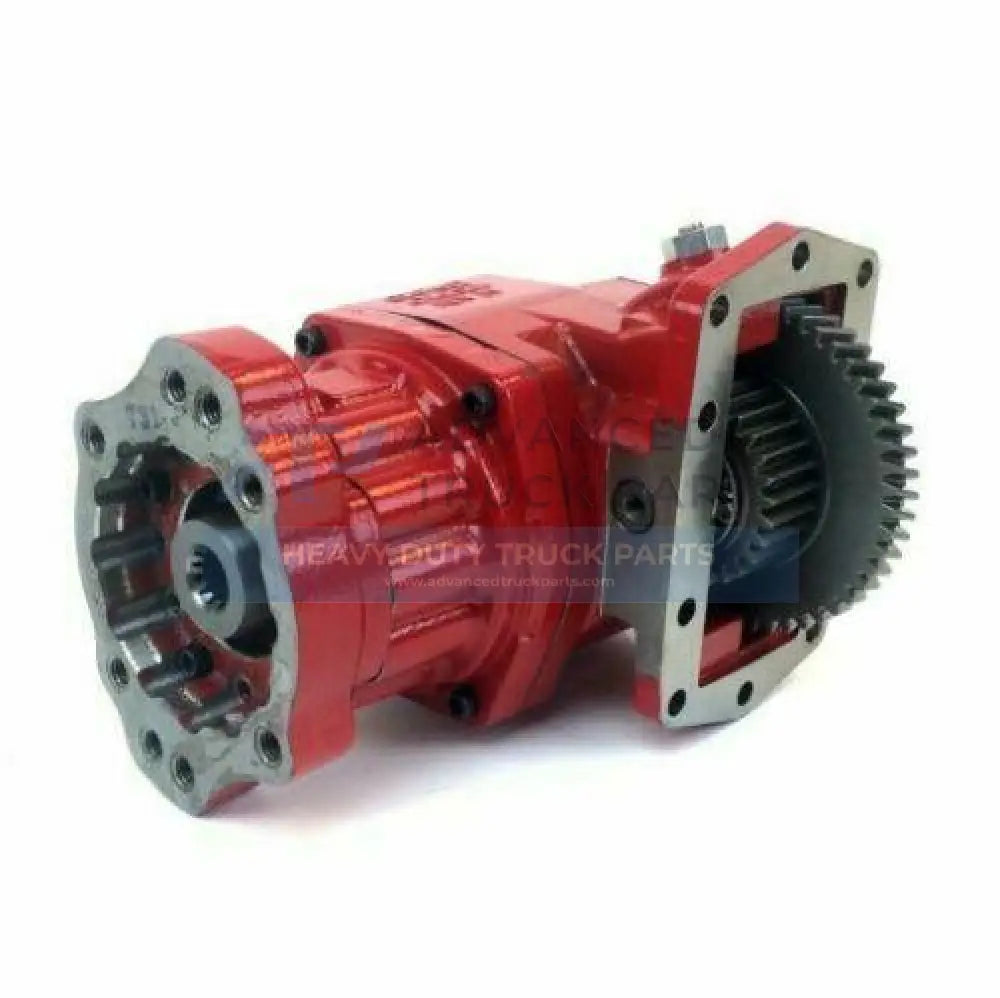

Parker Chelsea 280Ggfjp-B8Rs Pto Power Take Off For 280 Allison Powershift 10 Bl

Description: 280ggfjp-B8rs Pto Power Take Off For 280 Allison Powershift 10 Bolt

Condition: New

Brand: Parker Chelsea

Part Number: 280ggfjp-B8rs

Chelsea 280 Series Is A Hydraulically Shifted Hot Shift Pto Designed For Automatic Transmissions With A 10-Bolt Aperture, Commonly Found On Allison And Caterpiller Transmissions. The 280 Series Replaces The 277/278 Series.

Chelsea'S 280 Series Is A New Pto That Delivers High Continuous-Duty Torque In A Range Of Speeds Where Power And Durability Are Required. It Is Capable Of Up To 390 Ft-Lbs In Continuous Duty Applications. With Nine Ratios, Rotatable Output Flanges, Remote Hydraulic Valve Options, Wet-Spline Technology, And Chelsea Smart Start Options, It Is Perfect For Vacuum, Refuse, And Fire Rescue Applications In The Mobile Market.

Markets:
• Aerial
• Oil Gas
• Defense
• On-Highway

Products Features:
• Rotatable Flanges To Improve Clearance
• Continuous-Duty Torque Rating Up To 390 Ft-Lbs
• Wet-Spline Option To Extend Pto/Pump Shaft Life
• Smart Start Option For High-Torque Start-Up
• Two Year Warranty

Applications:
• Fire Rescue Trucks
• Pumper Cleaner
• Truck Cranes
• Refuse Trucks



Performance Characteristics
Mounting Style 10-Bolt
Shift Type Powershift Hydraulic
Standard Output Shaft Size 1-1/4" Round W/Key
Continuous Torque Rating (Lbs-Ft) 390
Continuous Torque Rating (Nm) 529
Hosepower Rating For Continuous Service
At 500 R.P.M. Of Output Shaft (Hp) 37
At 500 R.P.M. Of Output Shaft (Kw) 28
At 1000 R.P.M. Of Output Shaft (Hp) 74
At 1000 R.P.M. Of Output Shaft (Kw) 56
Approximate Weight: 49 Lbs. [22 Kg]
* Check Application Pages For Actual Torque Ratings
